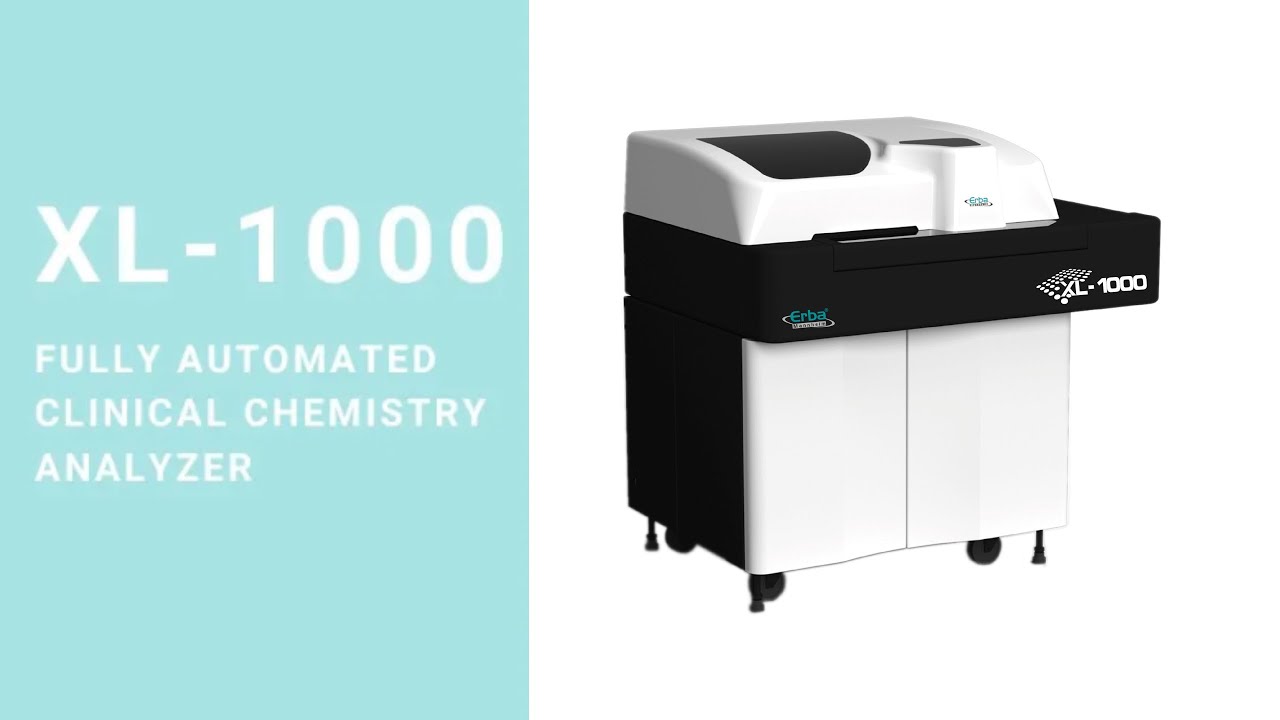

XL 1000 with the throughput of upto 1040 tests per hour is the ideal instrument for centralizing the complete biochemistry testing load on a single fully automated platform. Increased walk away productivity and less human intervention make it an apt analyzer for large laboratories.
Equipped with all necessary advanced features that one expects from a high end fully automated chemistry analyzer, e.g, sample loading through rack system, Cooled calibrator and control carousal, low reading volume of 150 µl only, Diffraction grating with 15 wavelengths from 340 nm to 800 nm, user-friendly software etc. to optimize and run the daily workload. XL 1000 is a dream come true piece of electronic workhorse for laboratories and the perfect solution. XL 1000 is a dependable partner and unique in its own to meet with the tight deadlines for increasing workload.
Product Features:
- Fully Automatic, Discrete, Patient prioritized, Random Access Clinical Chemistry Analyzer with throughput of 1040 tests/hour
- 3 Reagent capabilities
- 147 long life Hard Glass cuvettes
- Separate Carousal for STAT samples
- Onboard cooling for reagents
- Extensive database for storing patient data and Q.C. results
- Primary tube sampling with bar code identification
- 9 stage laundry for cuvettes wash
- 150 samples can be loaded at a time through rack system
Product Applications:
- All routine Clinical Chemistries
- Specialized chemistries like HbA1c, ADA, Apo A1, Apo (B), Lp (a)
- Immunoturbidimetric Assays like ASO, RF, CRP, HbA1c etc.
- Therapeutic Drug Monitoring Tests
System Type:
Automated, Discrete, Random Access, Patient Prioritized, Clinical Chemistry Analyzer
Throughput:
1040 tests/hour ( 800 tests/hour photometric and up to 240 tests/hour ISE)
Programmable Parameters:
Default system pack parameters + upto 10 user defined parameters
Analytical Methods:
1-Point, 2-Point, Rate-A, Rate-B
Photometry:
Multi-wavelength diffraction grating with 15 wavelengths (340, 376, 405, 450, 480, 505, 528, 546, 570, 600, 628, 660, 700, 750 & 800 nm)
O.D. Range:
0 – 3.0 Absorbance
Sample Carousal:
150 samples can be simultaneously placed on the system excluding calibrators, controls & STAT samples
Sample Pipetting:
2-60 µl in steps of 0.1 µl
Sample Container:
Primary tubes of 5, 7 and 10 ml and sample cups
Reagent Carousal:
86 reagent positions with on board cooling
Barcode Reader:
Both for Samples & Reagents (Optional)
Reaction Cuvettes:
147 Hard Glass Cuvettes maintained at 37ᵒC
Reading Volume:
150 µl
Database:
Unlimited results
Quality Control:
Levy Jennings Quality control program and twin plot
Water Consumption:
Up to 25 liters per hour
Weight:
Approximately 275 Kg
