Easy Operation

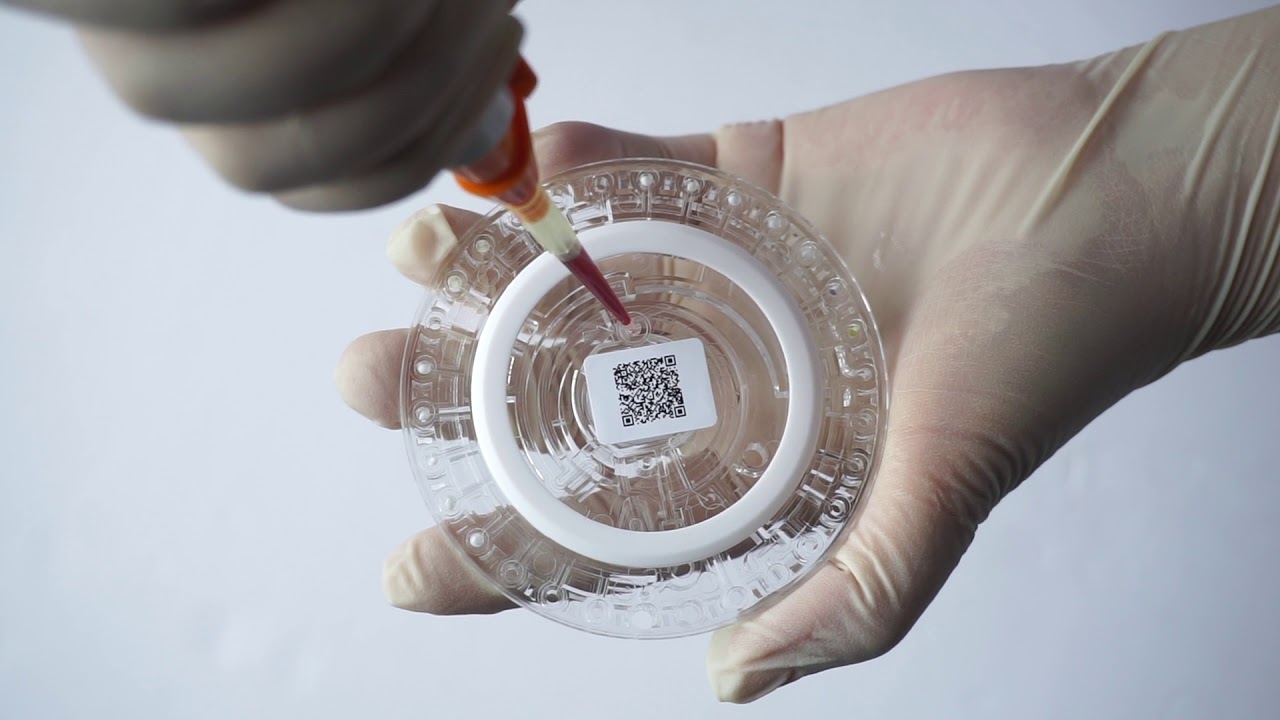

- Inject 100ul sample. No pre-treatment for sample. Only 100ul whole blood/serum/plasma required for one panel.

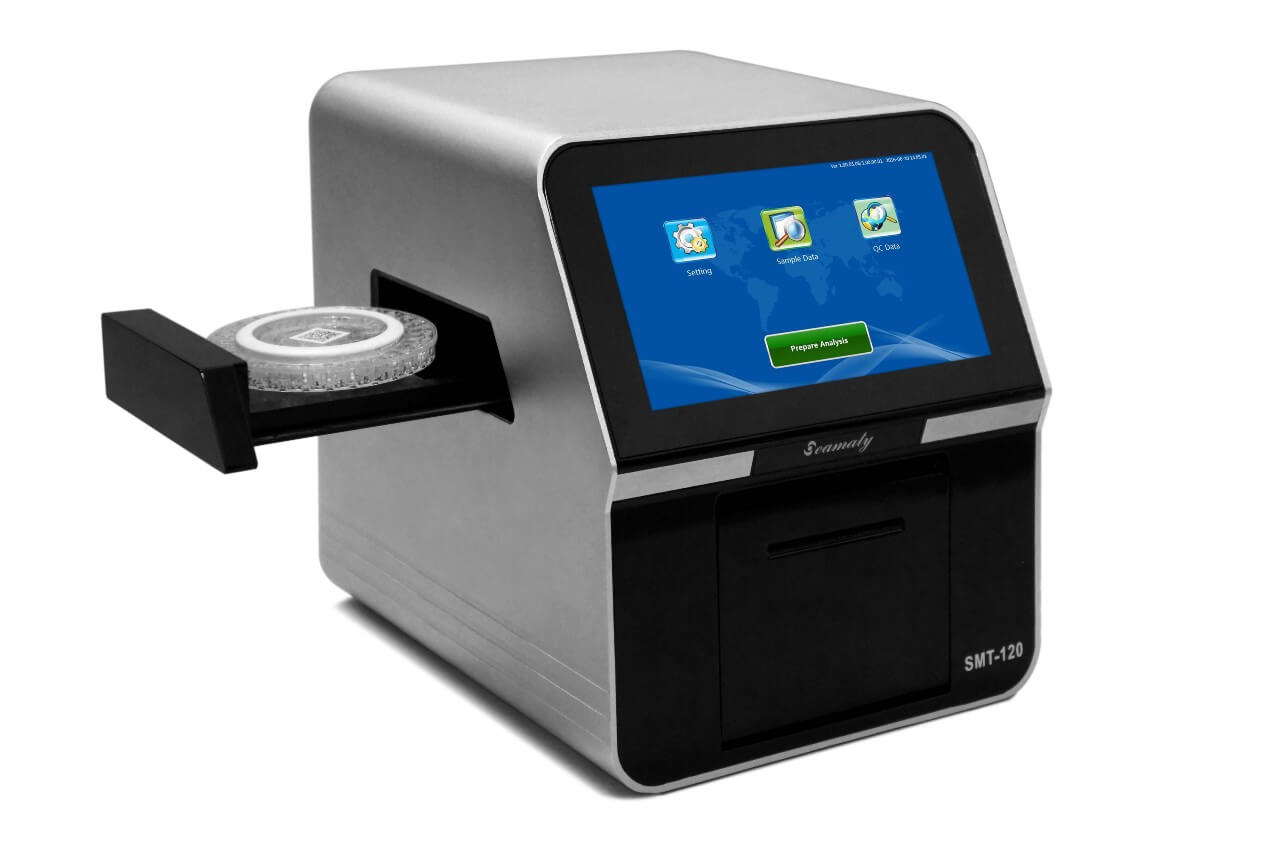

- Insert reagent disc. No maintenance, no need for centrifugation and adding diluent. No liquid system and other consumables such as pumps and valves.
- Read results after 12 minutes Microfluidic technology, no cross contamination.
Result reports will be printed automatically.
Sample volume:
90-120μl
Bar code:
QR code
Testing time:
12 minutes / sample
Temperature:
37℃±0.3℃
Resolution:
0.001Abs
Absorbance:
0-3.0Abs
Sample type:
Anti-coagulation whole blood, serum, plasma QC&Calibrate: IQC intelligent QC
Work condition:
Temperature:
10-32℃
Humidity:
<85%
Testing principle:
Absorption spectroscopy, transmission turbidimetry
Testing method:
End point, kinetic, fixed time, turbidmetry etc.
Light source:
12V/20W, halogen tungsten lamp’s life span is over 2500 hours
Power supply:
AC 100V-240V, 50-60Hz
Power Output:
15 7.0a, 105W MAX
Display:
Android 6.5 inch 800*480, multi-point capacitive touch screen
Storage:
500,000 results
Printer:
Built-in thermal printer
Connectors:
2 USB ports
Order code:
A00120000EN0
