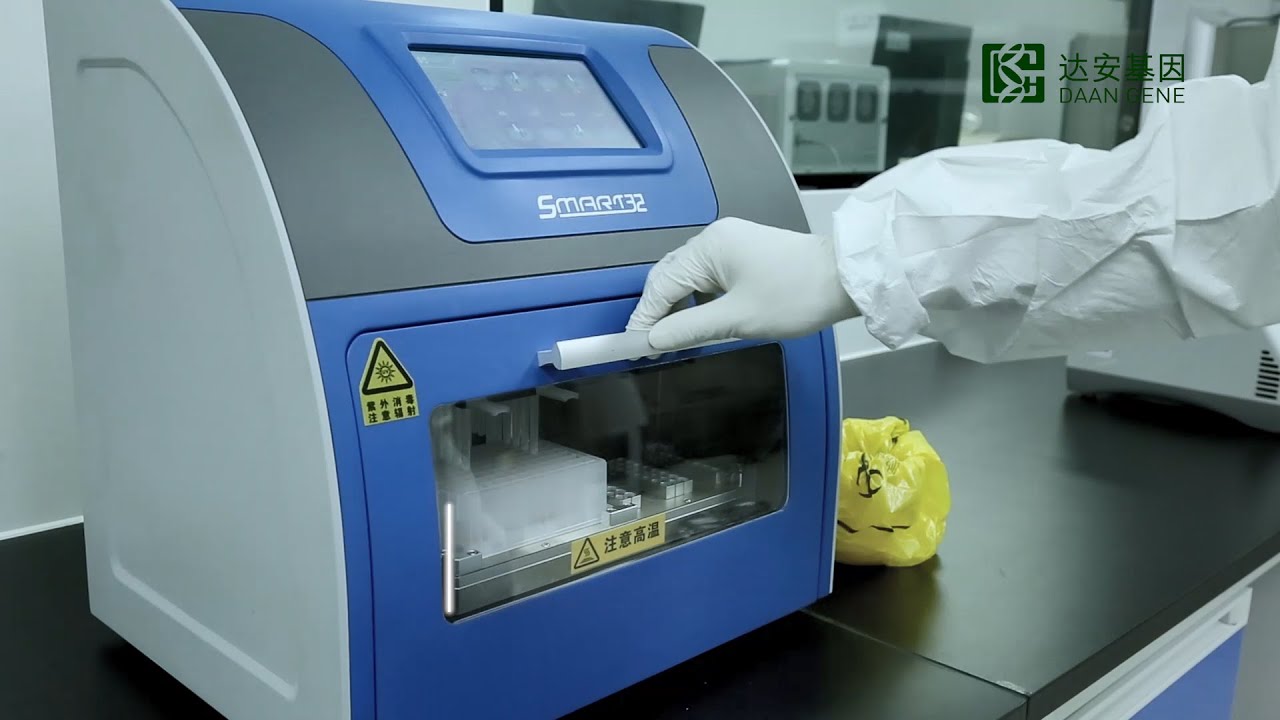

Smart-32 Nucleic Acid Extraction Instrument

Smart-32 Nucleic Acid Extraction Instrument is designed and manufactured by DaAn Gene. The extracting instrument owing the functions of temperature control, oscillating and blending, can crack samples and release the nucleic acid under the appropriate conditions, blend the magnetic beads with nucleic acid, elute and release the nucleic acid, transfer and separate the magnetic bead through magnetic device, at last extract the nucleic acid material from the samples. Instrument can extract a single sample or 32 samples at the same time, the user can edit experiment procedure, monitor experiment condition and open or close the ultraviolet light disinfection functions through the touch screen. It operates easily, extracts rapidly, and has reliable results.

Category: Tag:
Download Product Brochure
Request A Personalised Quote
  • High extraction rate
  • High throughput
  • High extraction quality
  • Open systems for various samples
  • Standard and mature experimental process

Reaction Volume:
20µl – 1000µl

Sample Volume:
≤ 600µl

Sample Handling Capacity:
1 – 32 samples

Extraction Plate:
2 Units of 96 extraction plates

The Collection Rate of Magnetic Beads:
≥ 95%

Temperature Range:
30°C – 90°C

Oscillation Speed for Mix:
Fast, medium and slow speed for different requirements

Difference Between Extracting Hole:
For the extraction of the same sample, the variation coefficient of CT value between holes is less than 3%.

Operation Interface:
Large screen for touching operation

Rapid Program Setting:
8 sets of rapid program for setting. The extraction could be started after 2 clicks at least

Instrument Connector:
RS232/RJ45/USB, etc.

UV:
Yes

Extraction Time:
30 – 60 minutes/time

Overall Dimension:
435 mm*340 mm*450 mm

Weight:
29 kg

Power Supply:
AC 110-240 V, 50 Hz/60Hz, 800VA

Operation Temperature Range:
10°C ~ 30°C

Operation Humidity Range:
≤ 80%

Sensitivity of Nucleic Acid Extraction:
For extraction of the 30IU/ml sample, the positive rate is more than 95%
