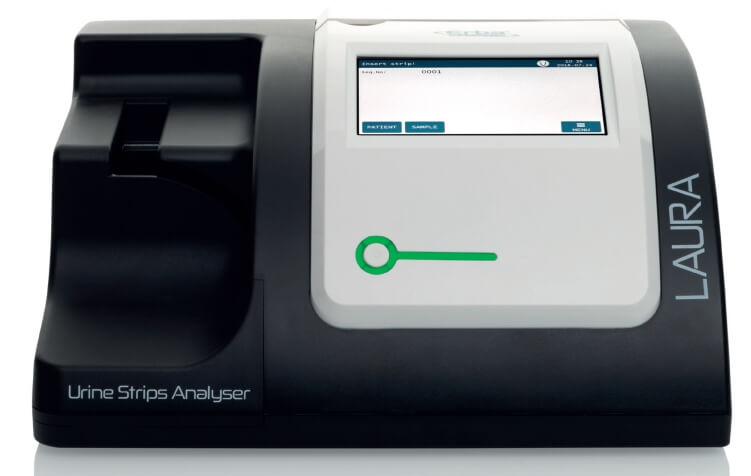

Urine strip analyser LAURA is a semi-automated urine strip reader with a throughput of 400 tests per hour – with continuous loading that’s a report every 9 seconds. It is designed as an efficient and powerful solution to fulfil requirements of small to medium-sized laboratories with workload of hundreds samples per day.
Product Features:
- Evaluation of 12 clinically significant parameters: specific gravity (SG), leucocytes (LEU), nitirtes (NIT), pH, protein (PRO), glucose (GLU), ketones (KET), urobilinogen (UBG), bilirubin (BIL), blood (BLD), creatinine (CRE), microalbumin (MA)
- Automatic calculation of MA/CRE
- Strip type flexibility
- Advanced QC management – QC Timing, QC Reminder
- Manual entry of sample color and turbidity with customizable category names
- External keyboard and barcode reader connectivity
- LIS connectivity
Product Applications:
- Routine urine chemistry analysis
System:
Continuous loading Semi-automated Urine test strip analyzer
Type:
Semi-quantitative reflectance photometer
Measuring System:
Wavelengths – 535, 610 nm
Memory:
1000 results
Throughput:
400 tests /hr
User interface:
5” TFT display (320 x 240 pixels)
Printer:
Built-in Thermal Printer
Certificates:
CE
Physical Dimensions:
430 x 290 x 170 mm
Weight:
5 Kg including the adaptor
Test Strips:
DekaPHAN Laura & MicroalbuPHAN Laura
Parameters:
Specific Gravity, Leucocytes, Nitrite, pH, Protein, Glucose, Ketone, Urobilinogen, Bilirubin, Blood & Microalbumin, Creatinine
Host Interface:
Communication via RS232 & USB port
Host Protocol:
Uni-directional
Sample Identification:
Sample ID via keyboard entry, barcode reader
Power source:
AC 90-230V/50-60 Hz
Power consumption:
≤45 W max.
